Upper Arm Spray Assembly WD22X10084

$13.46 Price may not be up-to-date.


In Stock

Affiliate Disclosure

Part Number:




Categories: ,

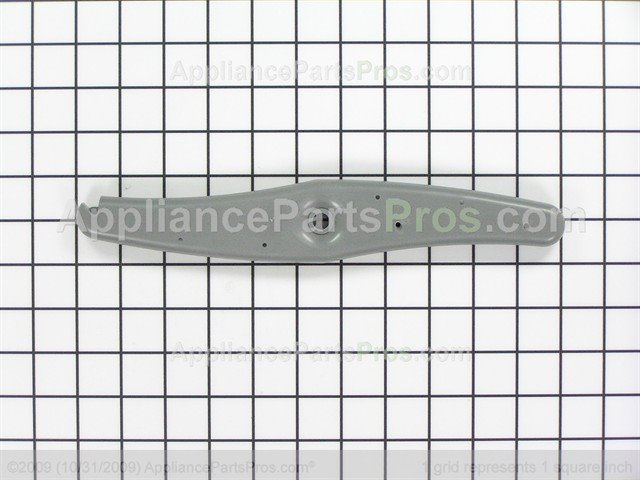

Upper Arm Spray Assembly WD22X10084 / AP5657391.

This is an upper arm spray assembly. This assembly cleans the contents that are inside of the dishwasher with rotating water sprays. This part is located on the upper side of the dishwasher. It is manufactured out of gray-colored plastic.A new upper arm spray assembly may be needed if this piece itself is clogged up due to residue from detergent or hard water. If the dishes are coming out cloudy with deposits on them, it may be time to replace the upper arm spray assembly. Any time the dishwasher doesn’t appear to be cleaning as effectively as it did when it was new, it’s a good time to inspect the arm spray upper assembly.This is a genuine GE part and is sourced directly from the manufacturer. It is sold individually. This specific upper arm spray assembly is compatible with dishwashers manufactured by GE.

Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. See all items in Dishwasher Spray Arm & Related.
GE also makes various appliance models for Sears / Kenmore.

WARNING: California’s Proposition 65

Cross Reference Information

Part Number WD22X10084 (AP5657391) replaces WD22X10045, WD22X10069, 2688772, PS3511316, WD22X10027.

How to Replace Upper Arm Spray Assembly WD22X10084 / AP5657391 #WD22X10084

Step by step instructions on how to replace a Upper Arm Spray Assembly WD22X10084 / AP5657391 #WD22X10084 for Dishwasher made by GE. Note: This video is intended to give you the general idea of the part replacement procedure. Your appliance may differ depending on the manufacturer and model.
