Door Recess Spring WR02X10585

Price Not Available Price may not be up-to-date.

We earn commission on qualifying purchases.

Part Number:




Categories: ,

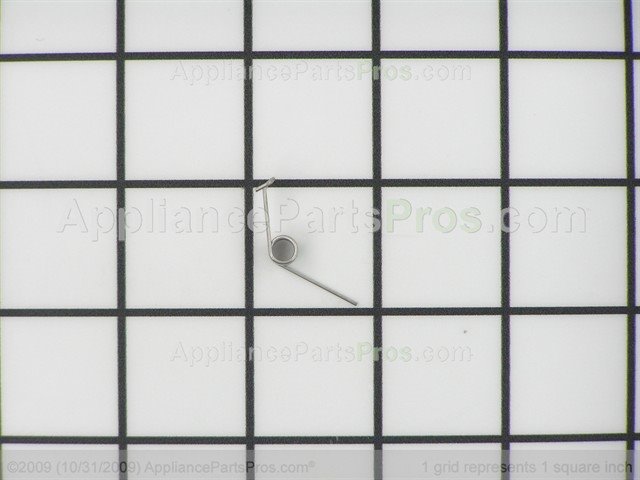

Door Recess Spring WR02X10585 / AP3670155.

This part is a door recess spring that is located in the icemaker of refrigerators. Its function is to ensure the ice door goes back to a closed position or the ice dispenser lever returns to its home position when released. Normal wear and tear may cause the spring to become stretched and not function correctly. If the ice machine’s door does not close fully, the recess spring may need to be replaced. If the ice machine’s dispenser lever is not returning to home position and ice is not being made, the spring should be checked and replaced if necessary.The door recess spring is located behind the main control panel in the water dispenser assembly. Before replacing the spring, make sure the power is disconnected to the refrigerator and turn the water source off as well. Remove the main control panel to access the water dispenser assembly. Remove and replace the door recess spring. Reinstall the control panel and reconnect the power. Test the door.This a genuine OEM replacement part sourced directly from the manufacturer. This gasket is made of black rubber and sold individually. The gasket is designed for use in dishwashers manufactured by General Electric and Hotpoint.

This part fixes the following symptoms

  • Door latch failure
  • Door sweating
  • Freezer section too warm
  • Frost buildup
  • Ice maker not making ice
  • Ice maker won’t dispense ice
  • Not dispensing water

Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. See all items in Refrigerator Spring.
GE also makes various appliance models for Sears / Kenmore.

WARNING: California’s Proposition 65

Cross Reference Information

Part Number WR02X10585 (AP3670155) replaces 879075, AH285013, EA285013, PS285013, WR2X10585.

How to Replace Door Recess Spring WR02X10585 / AP3670155 #WR02X10585

Step by step instructions on how to replace a Door Recess Spring WR02X10585 / AP3670155 #WR02X10585 for Refrigerator made by GE. Note: This video is intended to give you the general idea of the part replacement procedure. Your appliance may differ depending on the manufacturer and model.
