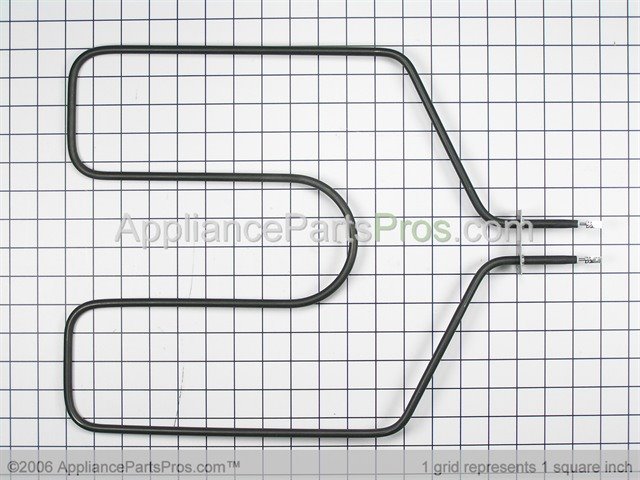

Broil Element WB44K5009

$45.18 Price may not be up-to-date.

We earn commission on qualifying purchases.

Part Number:




Categories: ,


Broil Element WB44K5009 / AP2030967.

This is a broil element that is used on wall ovens, ranges, and microwave oven combos. A broil element is located at the top of the oven and provides heat when the oven is on the broil setting. When it is working properly, it will glow bright orange when the broil setting is being used.A new broil element may be needed if the original is not heating at all, or if it is providing very little heat. If the oven is not heating evenly or there is little to no heat when baking, it could be due to the broil element being burned out. Never perform care and maintenance on an appliance that is powered on.This is a genuine GE part and is sourced directly from the manufacturer. It is sold individually. This particular broil element is compatible with wall ovens, ranges, and microwave oven combos that are manufactured by General Electric, Kenmore, and Hotpoint.

This part fixes the following symptoms

  • Little to no heat when broiling
  • Element will not heat

Genuine GE part. GE brands include General Electric, Hotpoint, RCA, and others. See all items in Range / Cooktop / Oven Heating Element.
GE also makes various appliance models for Sears / Kenmore.

WARNING: California’s Proposition 65

Cross Reference Information

Part Number WB44K5009 (AP2030967) replaces 260838, 344895, AH249244, EA249244, PS249244.

How to Replace Broil Element WB44K5009 / AP2030967 #WB44K5009

Step by step instructions on how to replace a Broil Element WB44K5009 / AP2030967 #WB44K5009 for Range, Wall Oven made by GE, Kenmore. Note: This video is intended to give you the general idea of the part replacement procedure. Your appliance may differ depending on the manufacturer and model.
